Bulkhead Reducing Unions 缩口径对接头-面板型
产品特性 ：
VICI / Valco压合接头 (Compression fitting)
当螺帽 ( Nut ) 锁紧时，套环 ( Ferrule ) 即压合在管路 ( Tubing ) 上，为高压条件下金属管的连接提供可靠的保证。
Bulkhead Reducing Unions 缩口径对接头-面板型

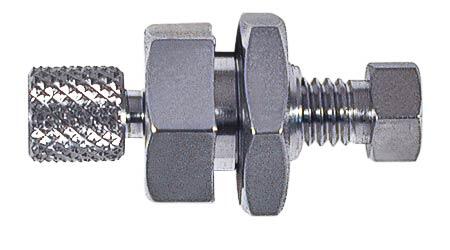

Bulkhead Internal Reducing Unions – Stainless steel
隔板型不锈钢内缩口径对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/16" to 1/32" | 0.25mm | 5/16" | ZBRU1.5 | |
0.50mm | 5/16" | ZBRU1.5L | ||
1/32" | 5/16" | ZBRU1.5T | ||
1/8" to 1/32" | 0.25mm | 5/16" | ZBRU2.5 | |
0.50mm | 5/16" | ZBRU2.5L | ||
1/32" | 5/16" | ZBRU2.5T | ||
1/8" to 1/16" | 0.25mm | 5/16" | ZBRU21C | |
0.75mm | 5/16" | ZBRU21 | ||
1/16” | 5/16" | ZBRU21T | ||
1/4" to 1/16" | 0.25mm | 7/16" | ZBRU41C | |
0.75mm | 7/16" | ZBRU41 | ||
1/16" | 7/16" | ZBRU41T | ||
1/4" to 1/8" | 0.75mm | 7/16" | ZBRU42 | |
2.00mm | 7/16" | ZBRU42L | ||
1/8" | 7/16" | ZBRU42T |

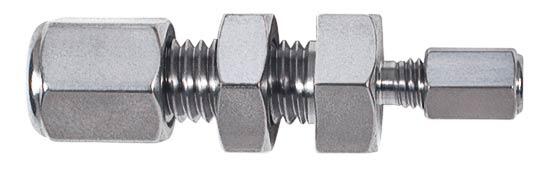

Bulkhead External Reducing Unions – Stainless steel
隔板型不锈钢外缩口径对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/8" to 1/16" | 1.00mm | 5/16" | EBRU12L6 | |
1/16" | 5/16" | EBRU12T | ||
1/4" to 1/16" | 1.00mm | 7/16" | EBRU14L | |
1/16" | 7/16" | EBRU14T | ||
1/4" to 1/8" | 2.00mm | 7/16" | EBRU24L |

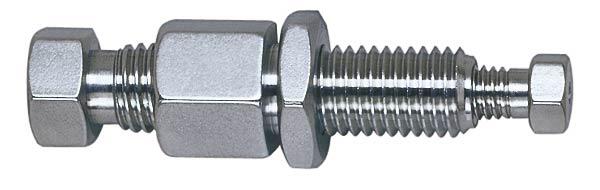

Bulkhead External/Internal Reducing Unions- Stainless steel
隔板型不锈钢外转内缩口径对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/16" to 1/32" | 0.50mm | 5/16" | EZBRU1.5L | |
1/32" | 5/16" | EZBRU1.5T | ||
1/8" to 1/32" | 0.50mm | 5/16" | EZBRU2.5L | |
1/32" | 5/16" | EZBRU2.5T | ||
1/8" to 1/16" | 0.75mm | 5/16" | EZBRU21 | |
1/16” | 5/16" | EZBRU21T | ||
1/4" to 1/16" | 0.75mm | 7/16" | EZBRU41 | |
1/16" | 7/16" | EZBRU41T | ||
1/4" to 1/8" | 1.00mm | 7/16" | EZBRU42 | |
2.00mm | 7/16" | EZBRU42L | ||
1/8" | 7/16" | EZBRU42T |
Bulkhead Internal / External Reducing Unions- Stainless steel
隔板型不锈钢内转外缩口径对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/16" to 1/32" | 0.25mm | 5/16" | EZBRU.51 | |
0.50mm | 5/16" | EZBRU.51L | ||
1/32" | 5/16" | EZBRU.51T |
标准接头材质为不锈钢材质，亦提供特殊合金材质/特殊表面处理 ( SilcoNert / Sulfinert ) 可用于腐蚀性或反应性样品，如：HCL、CL2、NH3、硫化物，等。
