Bulkhead Unions 对接头-隔板型
产品特性 ：
VICI / Valco压合接头 (Compression fitting)
当螺帽 ( Nut ) 锁紧时，套环 ( Ferrule ) 即压合在管路 ( Tubing ) 上，为高压条件下金属管的连接提供可靠的保证。
Bulkhead Unions 对接头 - 隔板型

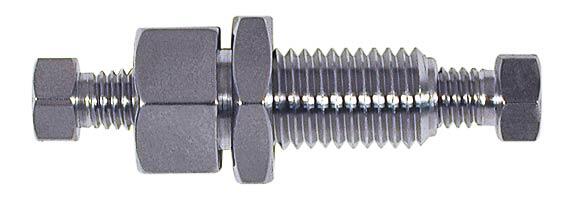

Bulkhead Internal Unions
隔板型不锈钢内对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/32" | 0.15mm | 5/16" | ZBU.5XC | |
0.25mm | 5/16" | ZBU.5 | ||
0.50mm | 5/16" | ZBU.5L | ||
1/32" | 5/16" | ZBU.5T | ||
1/16" | 0.15mm | 5/16" | ZBU1XC | |
0.25mm | 5/16" | ZBU1C | ||
0.50mm | 5/16" | ZBU1M | ||
0.75mm | 5/16" | ZBU1 | ||
1.0mm | 5/16" | ZBU1L | ||
1/16" | 5/16" | ZBU1T | ||
1/8" | 0.75mm | 7/16" | ZBU2 | |
2.0mm | 7/16" | ZBU2L | ||
1/8" | 7/16" | ZBU2T | ||
1/4" | 0.75mm | 5/16" | ZBU4 | |
4.6mm | 5/16" | ZBU4L | ||
1/4” | 5/16" | ZBU4T |

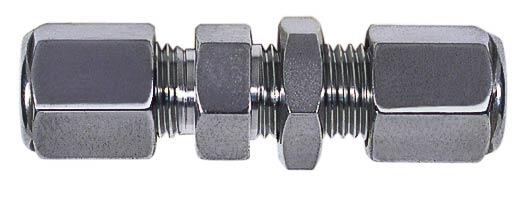

Bulkhead External Unions
隔板型不锈钢外对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/8" | 2.0mm | 5/16" | EBU2L | |
1/8" | 5/16" | EBU2T | ||
1/4" | 0.75mm | 7/16" | EBU4 | |
4.6mm | 7/16" | EBU4L | ||
1/4" | 7/16" | EBU4T |

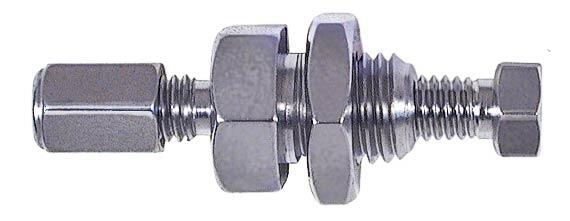

Bulkhead External/Internal Unions
隔板型不锈钢外转内对接头
Tubing OD | Bore | Bulkhead panel hole diameter | Product No. | |
1/16" | 0.25mm | 5/16" | EZBU1C | |
0.50mm | 5/16" | EZBU1M | ||
0.75mm | 5/16" | EZBU1 | ||
1/16" | 5/16" | EZBU1T | ||
1/8" | 1.0mm | 7/16" | EZBU2 | |
2.0mm | 7/16" | EZBU2L | ||
1/8" | 7/16" | EZBU2T |
标准接头材质为不锈钢材质，亦提供特殊合金材质/特殊表面处理 ( SilcoNert / Sulfinert ) 可用于腐蚀性或反应性样品，如：HCL、CL2、NH3、硫化物，等。
