Reducing Unions 缩口径对接头
产品特性 ：
VICI / Valco压合接头 (Compression fitting)
当螺帽 ( Nut ) 锁紧时，套环 ( Ferrule ) 即压合在管路 ( Tubing ) 上，为高压条件下金属管的连接提供可靠的保证。
Reducing Unions 缩口径对接头

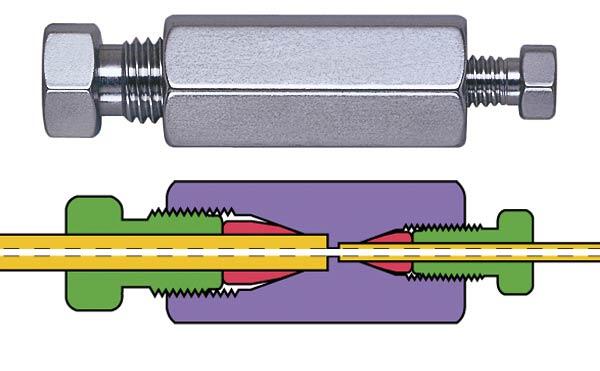

Internal Reducing Unions – Stainless steel (Standard)
不锈钢内缩口径对接头
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.15mm | ZRU1.5XC | |
0.25mm | ZRU1.5 | ||
0.50mm | ZRU1.5L | ||
1/32" | ZRU1.5T | ||
1/8" to 1/32" | 0.25mm | ZRU2.5 | |
0.50mm | ZRU2.5L | ||
1/32" | ZRU2.5T | ||
1/8" to 1/16" | 0.25mm | ZRU21C | |
0.75mm | ZRU21 | ||
1/16" | ZRU21T | ||
1/4" to 1/16" | 0.25mm | ZRU41C | |
0.75mm | ZRU41 | ||
1/16" | ZRU41T | ||
1/4" to 1/8" | 0.75mm | ZRU42 | |
2.0mm | ZRU42L | ||
1/8" | ZRU42T |

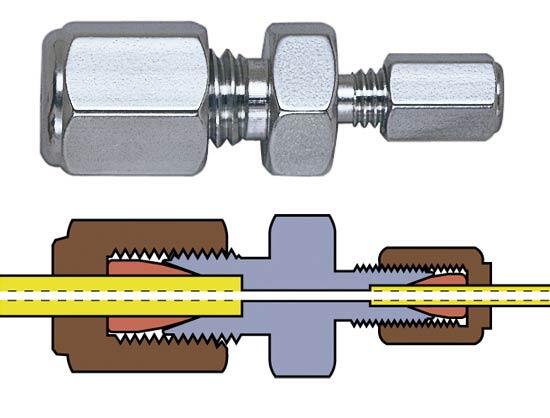

External Reducing Unions – Stainless steel (Standard)
不锈钢外缩口径对接头
Tubing OD | Bore | Product No. | |
1/8" to 1/16" | 0.75mm | ERU21 | |
1.00mm | ERU21L | ||
1/16" | ERU21T | ||
1/4" to 1/16" | 0.75mm | ERU41 | |
1/16" | ERU41T | ||
1/4" to 1/8" | 0.75mm | ERU42 | |
2.0mm | ERU42L | ||
1/8" | ERU42T |

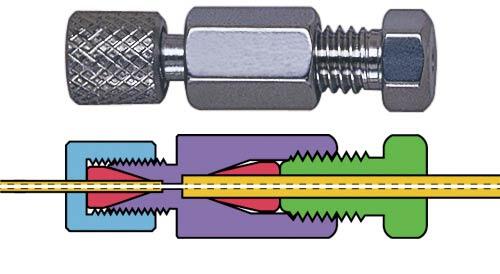

External / Internal Reducing Unions - Stainless steel (Standard)
不锈钢外转内缩口径对接头
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.25mm | EZRU1.5 | |
0.50mm | EZRU1.5L | ||
1/32" | EZRU1.5T | ||
1/8" to 1/32" | 0.25mm | EZRU2.5 | |
0.50mm | EZRU2.5L | ||
1/32" | EZRU2.5T | ||
1/8" to 1/16" | 0.25mm | EZRU21C | |
0.75mm | EZRU21 | ||
1/16" | EZRU21T | ||
1/4" to 1/16" | 0.25mm | EZRU41C | |
0.75mm | EZRU41 | ||
1/16" | EZRU41T | ||
1/4" to 1/8" | 1.0mm | EZRU42 | |
2.0mm | EZRU42L | ||
1/8" | EZRU42T |
Internal / External Reducing Unions - Stainless steel (Standard)
不锈钢内转外缩口径对接头
Tubing OD | Bore | Product No. | |
1/16" to 1/32" | 0.25mm | EZRU.51 | |
0.50mm | EZRU.51L | ||
1/32" | EZRU.51T |
标准接头材质为不锈钢材质，亦提供特殊合金材质/特殊表面处理 ( SilcoNert / Sulfinert ) 可用于腐蚀性或反应性样品，如：HCL、CL2、NH3、硫化物，等。
